- Nidek RT-600 (minus cyl) phoropter
Nidek RT-600 (minus cyl) phoropter
£1,100.00
Reference: OMP9678 Age: Unknown Location: Hampshire
Thank you for visiting Optical Marketplace today. You are viewing an item that has been successfully sold on our site, and is no longer available. However, if you click any of the links on the left hand side of the page you will visit the live site and see our current listings.
If the item you are looking for is not advertised then please follow us on Twitter and be the first to know when it gets added to our catalogue.

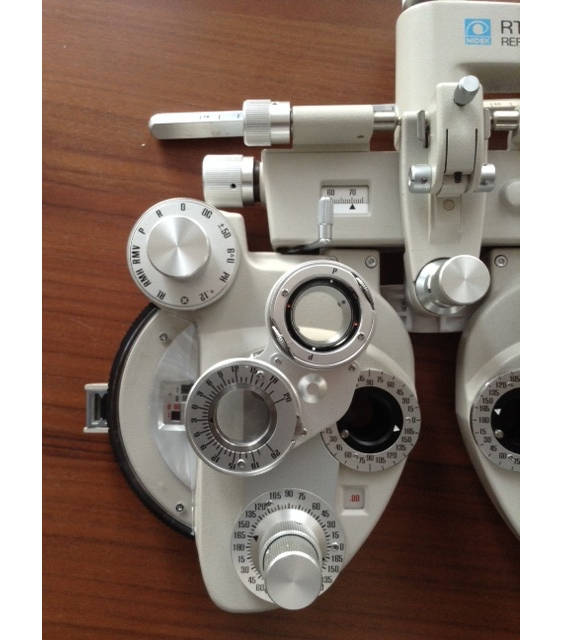

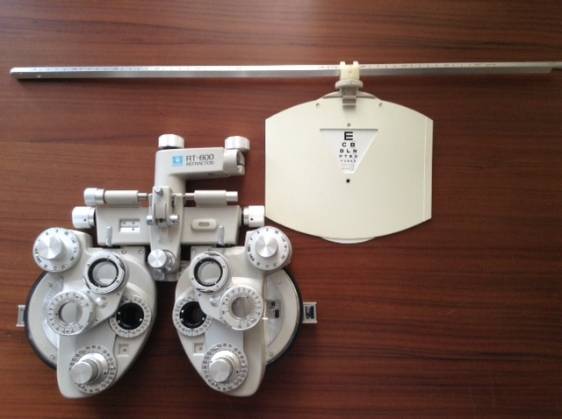

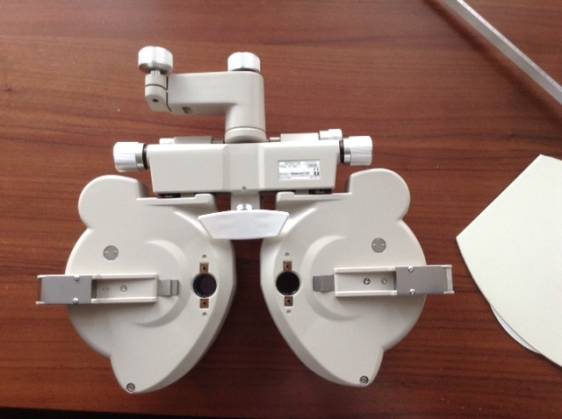

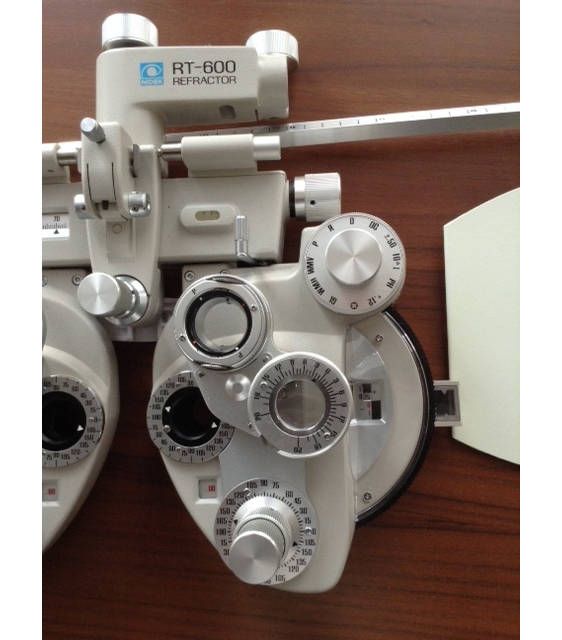

Top quality, NIDEK RT-600 phoropter head (minus cyl lenses).
In excellent working order. Clean, with no marks. This has come out of a rarely used spare test room & so has had very little use & shows no signs of aesthetic or mechanical wear.
It will be supplied with the following accessories;
Near vision reading card & rod.
Operators manual (in PDF format).
£1,100 (No VAT).
UK mainland delivery will be £35. For all other destinations, please enquire first.
Specifications as below.
MEASUREMENT RANGE:
SPHERE: -19.00 D to +16.75 D
CYLINDER: 0.00 D to -6.00 D
AXIS: 0 to 180 º
PRISM: 0 to 20∆
MEASUREMENT INCREMENTS:
SPHERE: 0.25 D
with +0.12 D aux. lens : 0.12 D
CYLINDER: 0.25 D
AXIS: 5 º
PRISM: 1∆
The ±0.25 D cross cylinder lens is geared to cylindrical axis knob.
RIGHT EYE AUXILARY LENSES:
O: Open aperture
R: Retinoscopic lens +1.50 D
P: Polarizing filter 135 º
RMV: Vertical Maddox Rod (Red)
RMH: Horizontal Maddox Rod (Red)
RL: Red Lens
+.12: Sphere lens +0.12 D
PH: Pin Hole
6∆U: 6∆ base up
±.50: ±0.50 D fixed cross cylinder
OC: Occluder
Test mark for PD adjustment
LEFT EYE AUXILARY LENSES:
O: Open aperture
R: Retinoscopic lens +1.50 D
P: Polarizing filter 45º
WMV: Vertical Maddox Rod (White)
WMH: Horizontal Maddox Rod (White)
GL: Green Lens
+.12: Sphere lens +0.12 D
PH: Pin Hole
10∆I: 10∆ base in
±.50: ±0.50 D fixed cross cylinder
OC: Occluder
Test mark for PD adjustment
ADDITIONAL:
PD adjustment: 50 to 75 mm
Convergence adjustment: ∞ to 380 mm (When PD is 64 mm.)
Forehead rest adjustment: 16 mm
Vertex distance: 12, 13.75 (long line), 16, 18, 20 mm
Dimensions: 336 (W) x 94 (D) x 293 (H) mm / Approx. 5 kg
