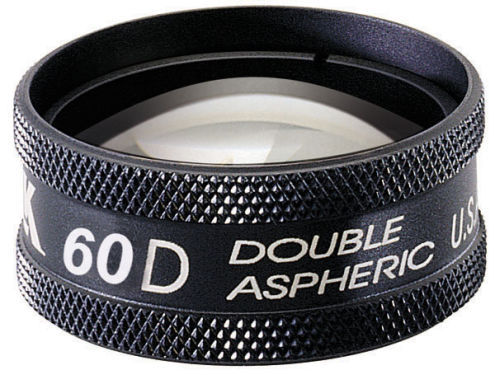

The 60D lens is one of the high magnification fundoscopy lenses used for a thorough and detailed examination of the central retina such as the macula and the nerve head. The trademark double aspheric design provides excellent detail and imaging for detecting subtle details and indications of retinal abnormalities. The optical profile of this lens requires a longer working distance of 18 mm from the patient. The high magnification provided by this lens is a great choice for diagnosis and assessment of the severity of Age-Related Macular Degeneration, following cup to disk ratios in patients and capillary hemorrhages. Dilation is required to obtain optimum retinal imaging with the 60D.

Primary Application

� High magnification views of the posterior pole

Features and Benefits

� Patented double aspheric glass optics provide enhanced imaging
� High magnification lens for detailed optic disc and macula viewing
� Ideal diameter for use in the orbital area

Field of View 68° / 81°

Image Magnification 1.15x

Laser Spot Magnification 0.87x

Working Distance 13 mm

• 10 year Volk Warranty
• Hard Case

A coloured ring is not avaliable
